Today’s dynamic manufacturing environment overwhelms old “GO/NO GO” methods and our Straight Thread Inspection System consistently goes above and beyond. An effective Straight Thread Inspection System should measure all of the vital thread attributes – Pitch
Diameter, Thread Lead, Thread Height, and Thread Form.

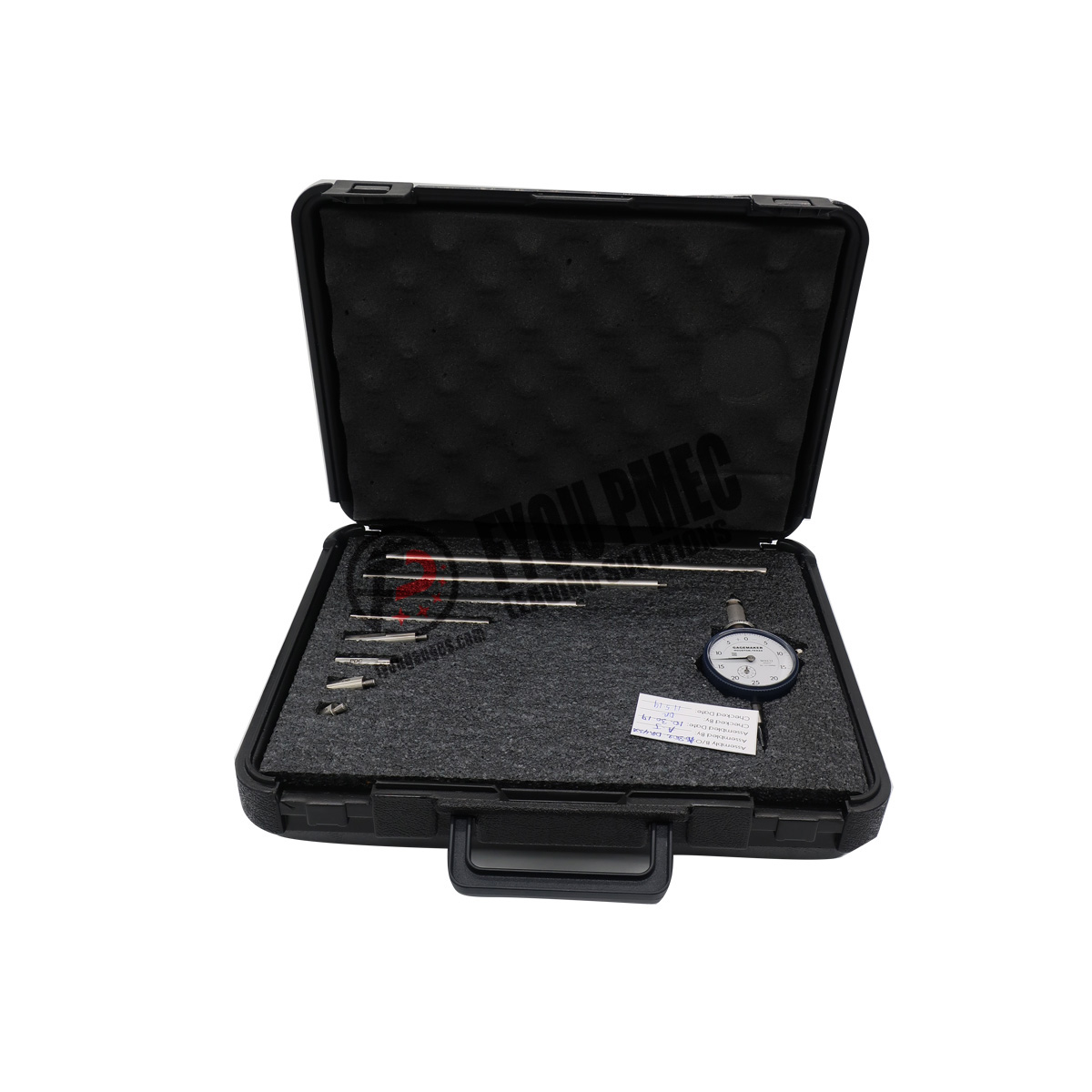

Fyou Gauge pitch diameter gages, commonly known as ball PD gages, verify that your part is within allowable tolerances. Improperly sized
pitch diameters compromise the load capacity of your threaded components.

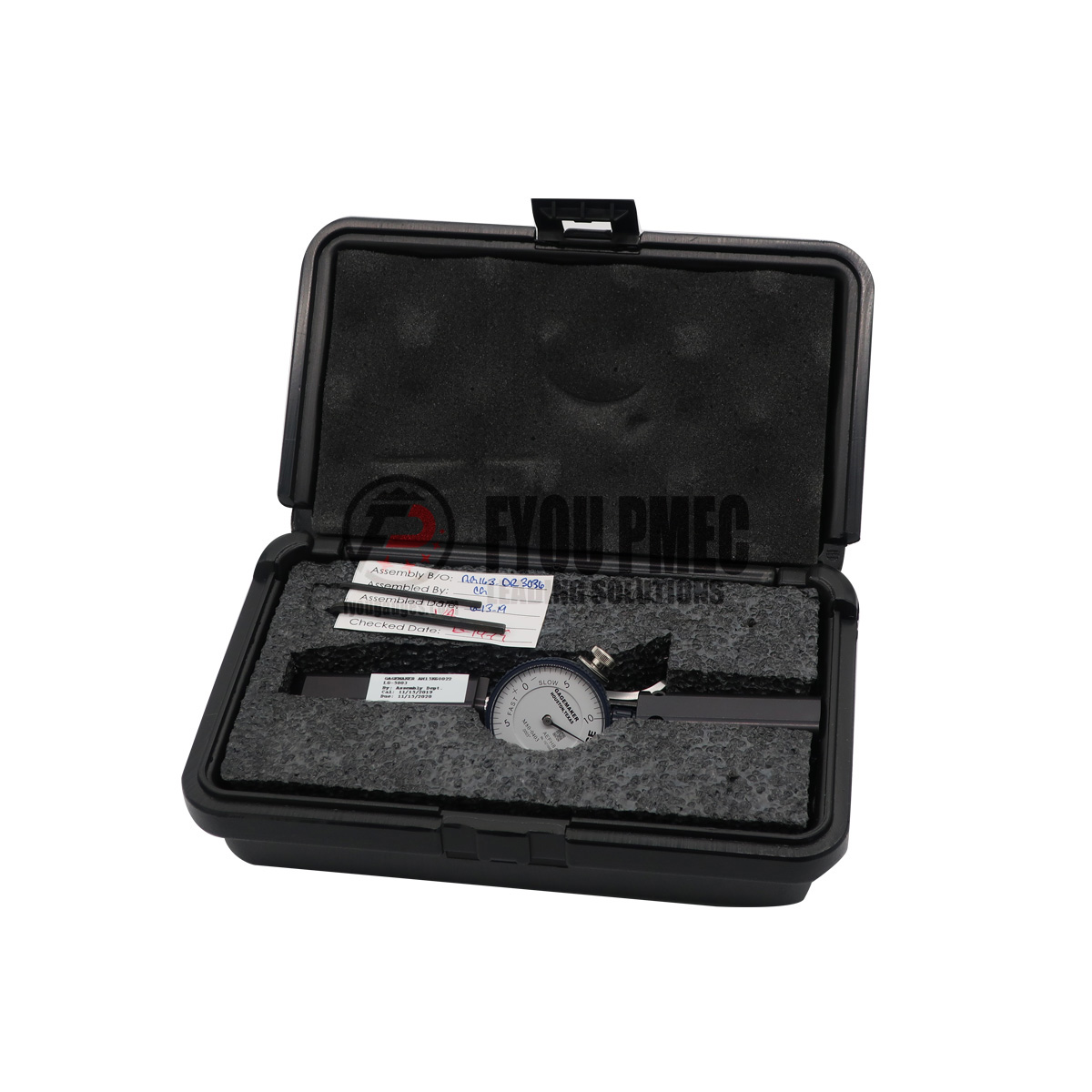

Lead error is most commonly generated by manual and CNC lathes not cutting properly. Therefore, it’s important to take measurements at the locations where the most lead error typically occurs. These readings help detect machine tool error and worn lead screws on your lathe.

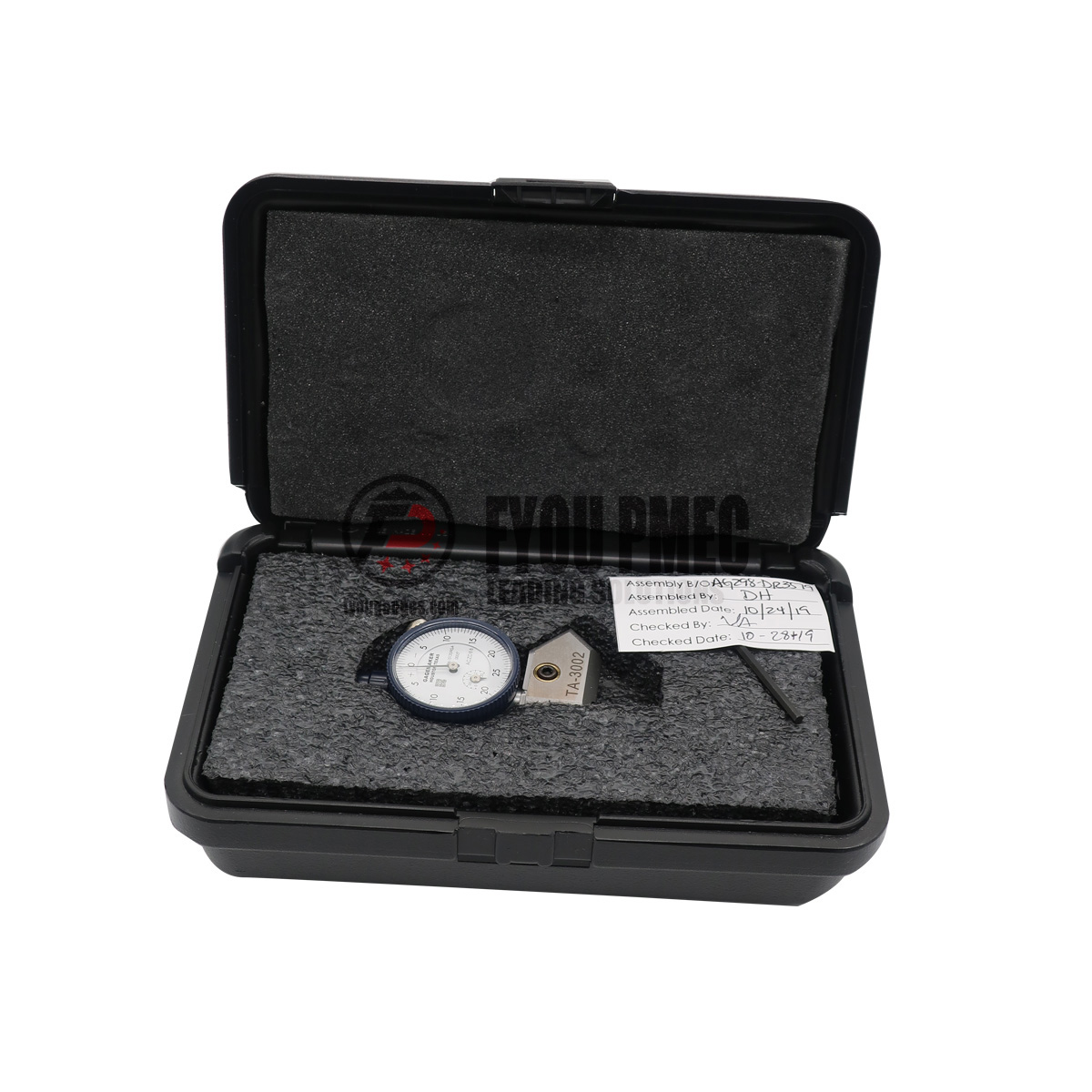

Measuring thread height helps monitor and control the depth of cut during manufacturing, detects broken inserts, and can be used to calculate the minor or major diameter,when only one is known.

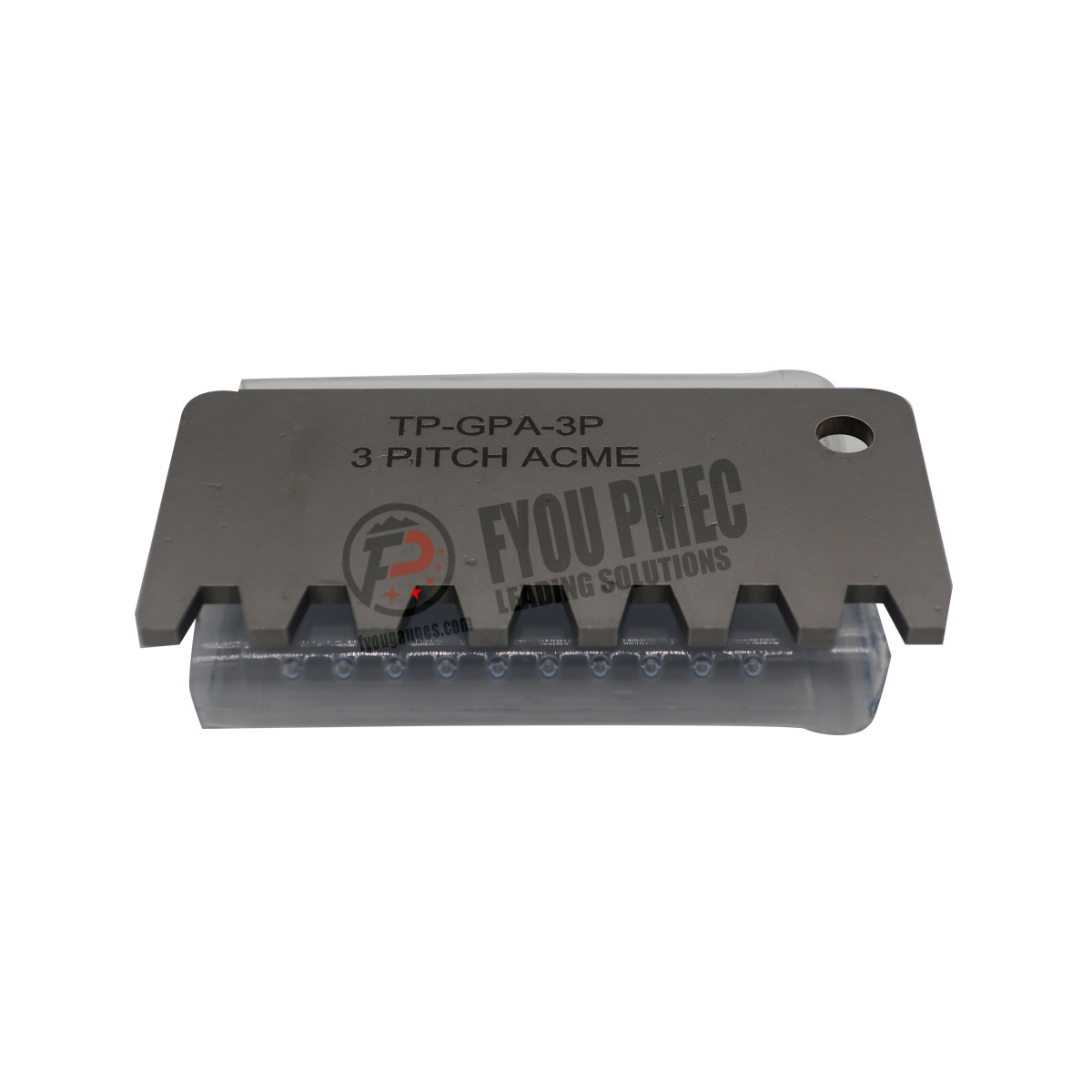

Fyou Gauge manufactures precision straight thread profile gages for the quick identification of product thread forms
