Union Thread Pitch Diameter Inspection
Fyou Gauge pitch diameter gages, commonly known as ball PD gages,verify that your part is within allowable tolerances. Improperly sized pitch diameters compromise the load capacity of your threaded components.

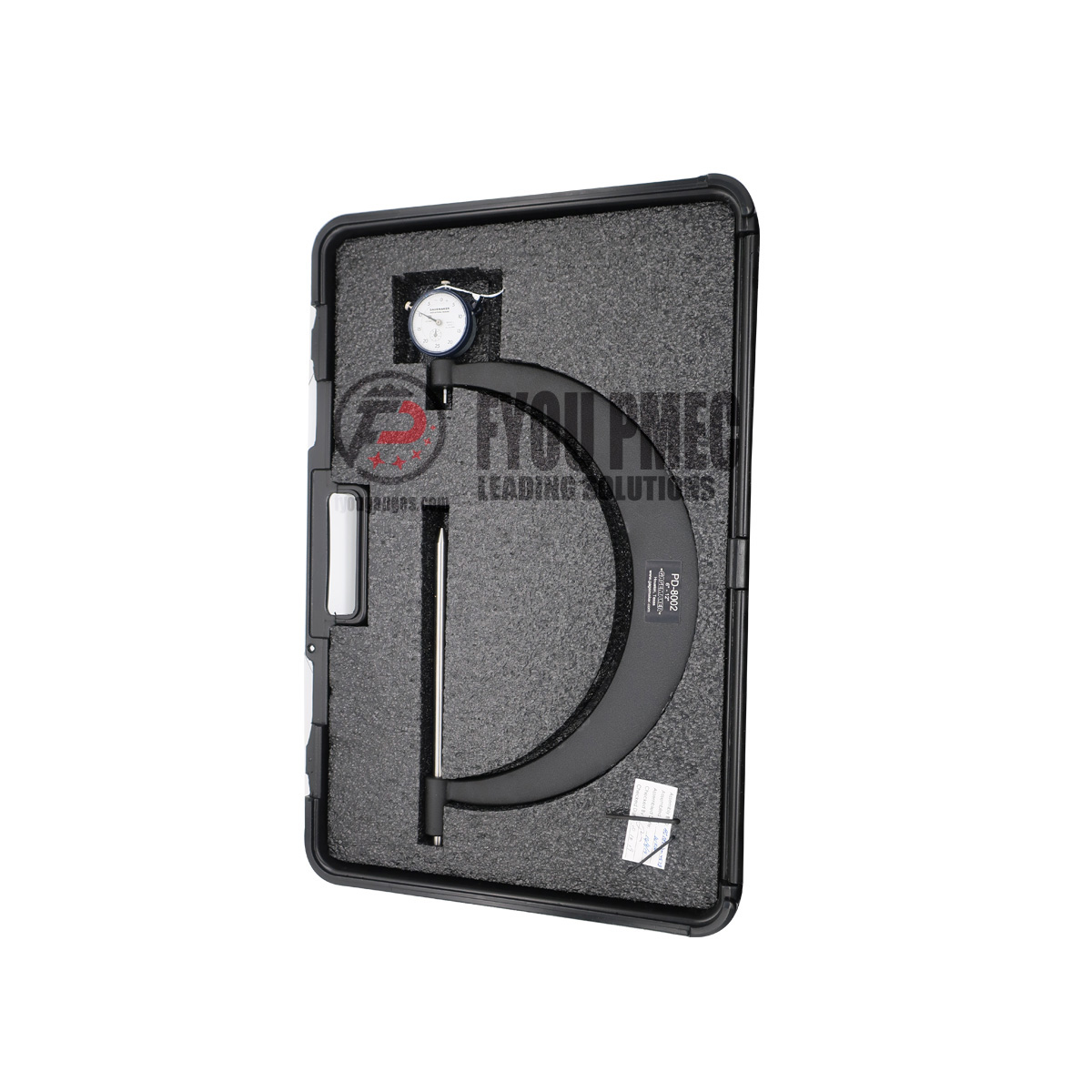

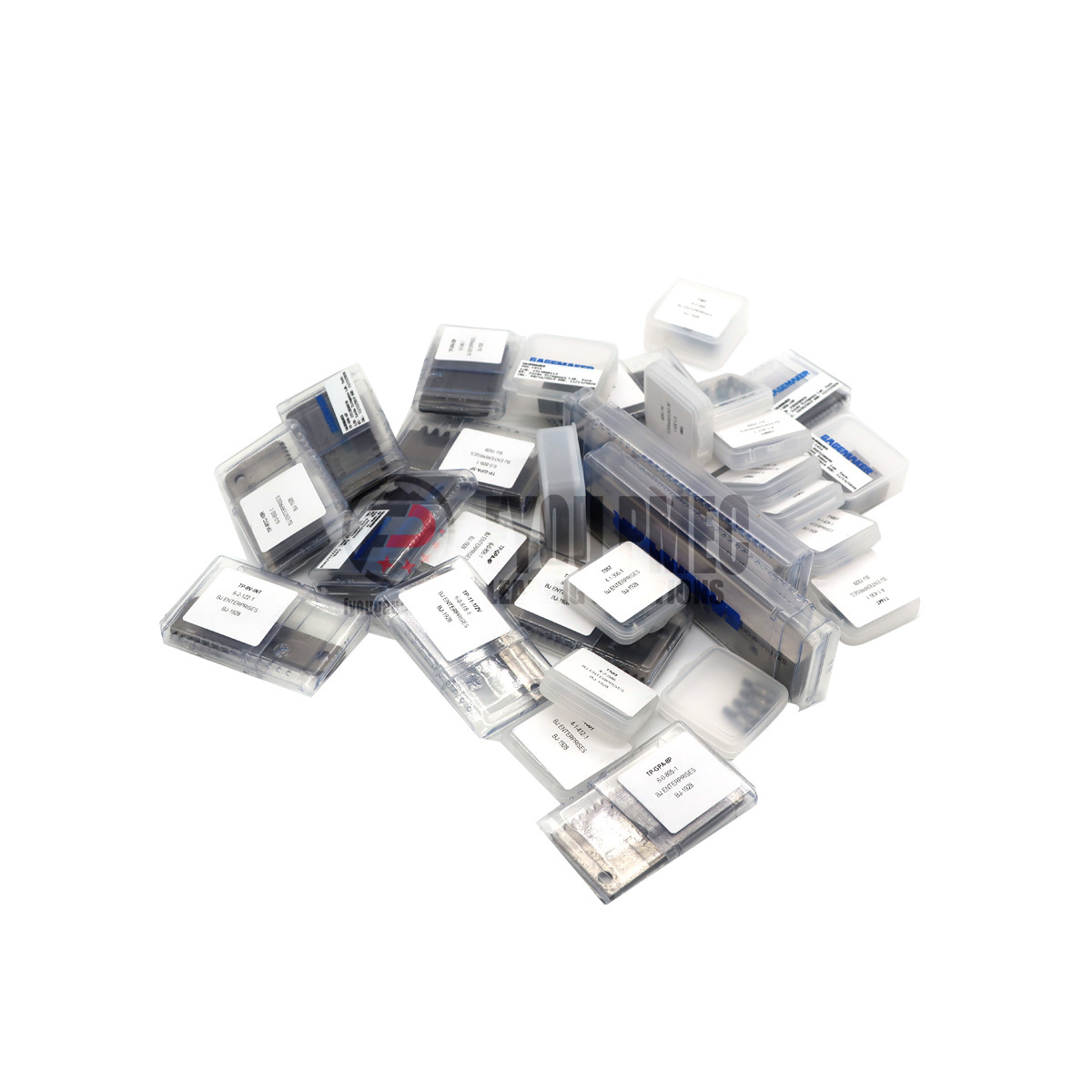

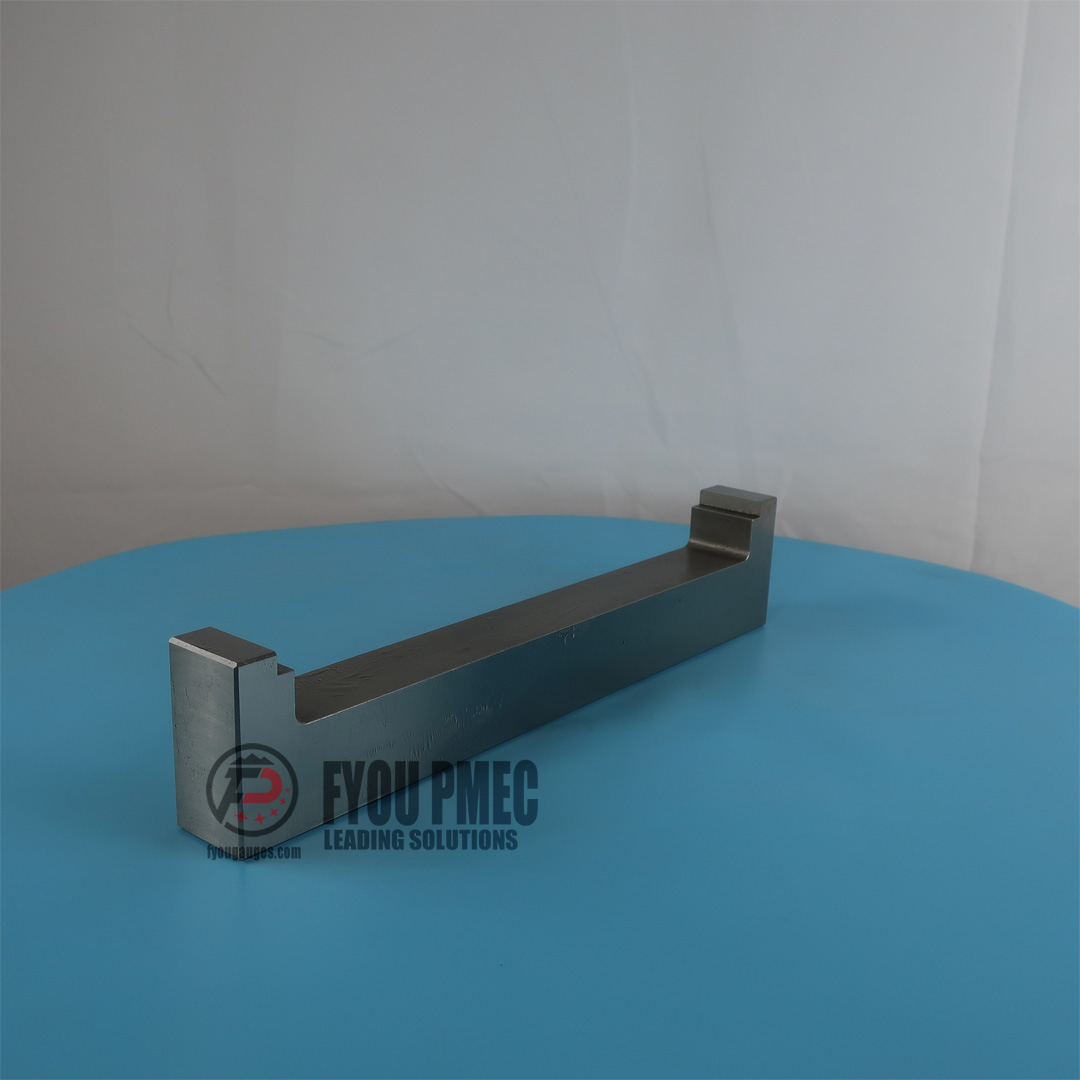

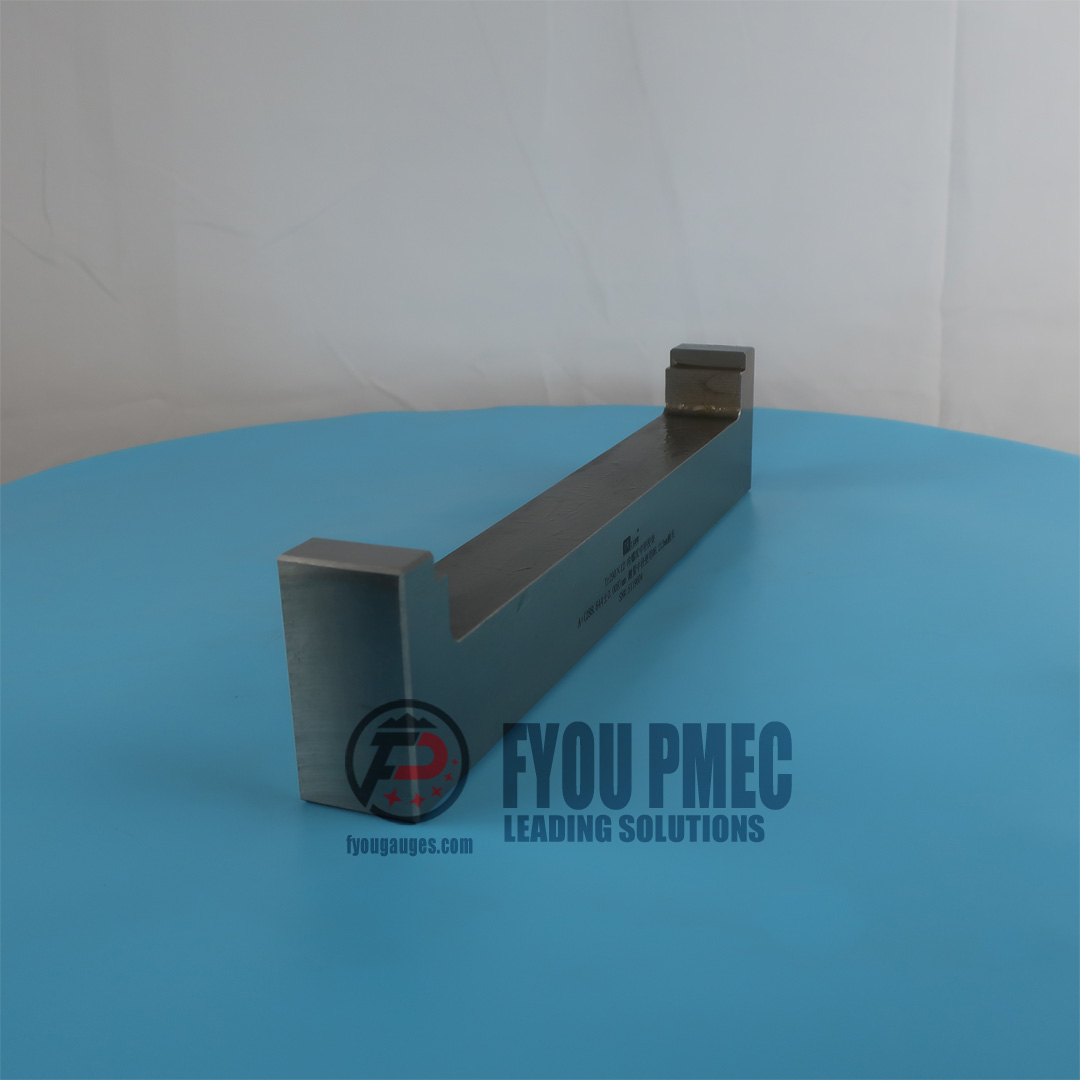

The ball pitch diameter gages gages indicate the pitch diameter size of the product’s external and internal threads. The gages are adjustable within a size range and use interchangeable contact points to measure different pitch threads. Setting dimensions for the pitch diameter gages are provided by setting standard.
