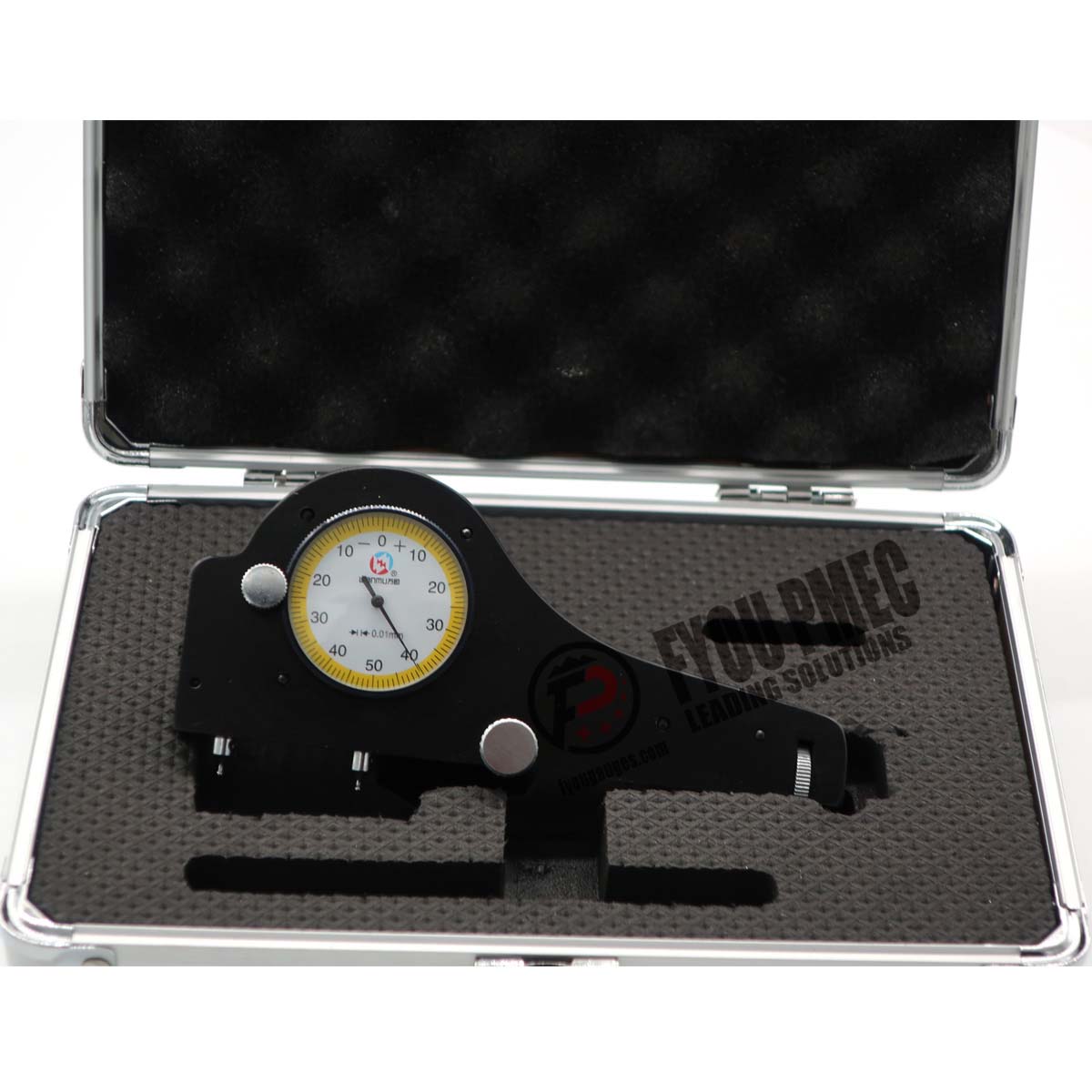

Oil Pipe External Thread Lead Gages, used to measure the lead of the external thread lead for the API Spec 5B and API Spec 7-2 standard threads.
| P/N | Model | Measuring Range | Resolution | Description |
| EXL5B | WRW | 0.5～4in Thread Length | 0.02mm | External Lead Gage2-point, Tubing&Casing |
| INL5B | WRN | 0.5～4in Thread Length | 0.02mm | Internal Lead Gage 2-point, Tubing&Casing |
| EXL72-RSC | WRW2 | 0.5～4in Thread Length | 0.002mm | External Lead Gage2-point, RSC |
| INL72-RSC | WRN2 | 0.5～4in Thread Length | 0.002mm | Internal Lead Gage 2-point, RSC |
Oil Pipe Thread Measuring Gauges, These high precision instruments are more than 20 kinds and widely used for oil industry to measure the monomial parameters of thread taper, thread pitch and thread height for oil pipe,such as tubing, casing and its connections, also are used to measure drill shank and rotary shoulder connections. It is constituted by the transmission system of rigidity main body and indicator to control and improve the quality of thread. It is the basic tools to measure the oil pipe thread and completely accord with international standard (API Spec5B&API SPEC 7-2).
When you order, please let me just know the thead type need be measured, we will provide you the best solutions and best quotations. More details or any questions please contact: sales@fyougauges.com or WhatsApp/Wechat: +86 13962168423
